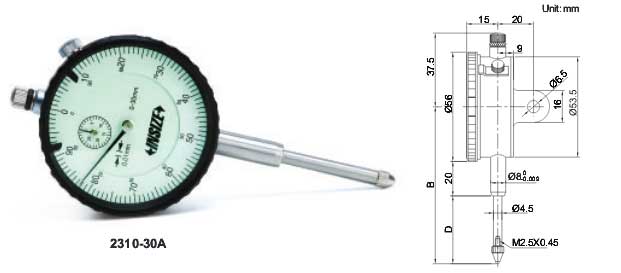

Dial Indicator

• Graducation : 0.01 mm
• Jeweled bearing
• With lug back
• Supplied with limit hands and bezel clamp
• Optional accessory: backs, contact points
• Packed in carton box

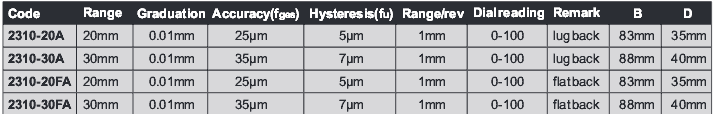

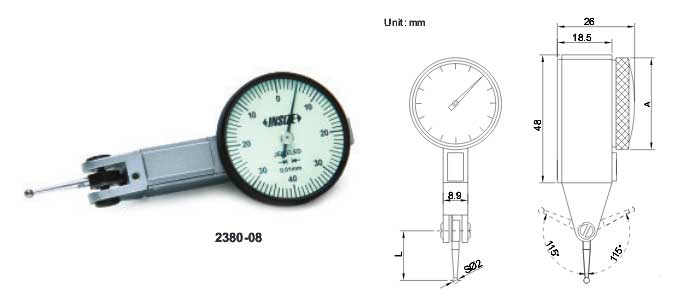

Dial Test Indicator
• Jeweled bearing
• Carbide contact point
• Two measuring directions
• Anti magnetic body
• Supplied with two clamps: diameter Ø4mm andØ8mm
• Optional accessory: styli

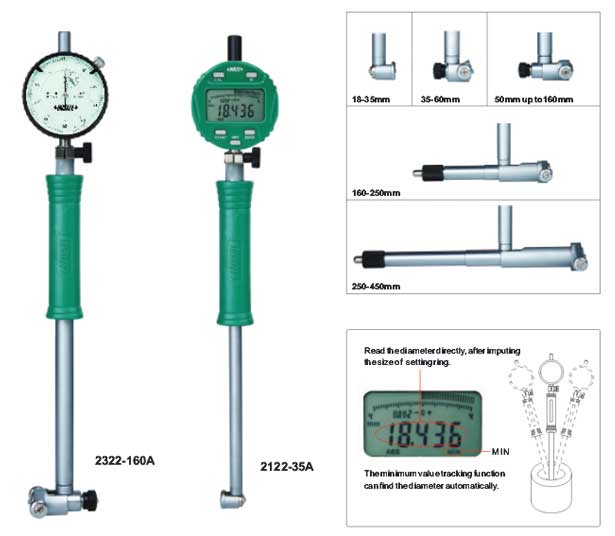

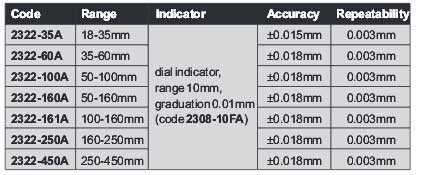

Bore Gauge

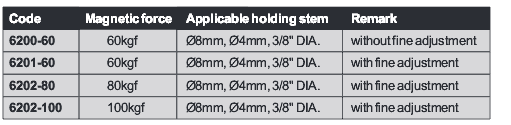

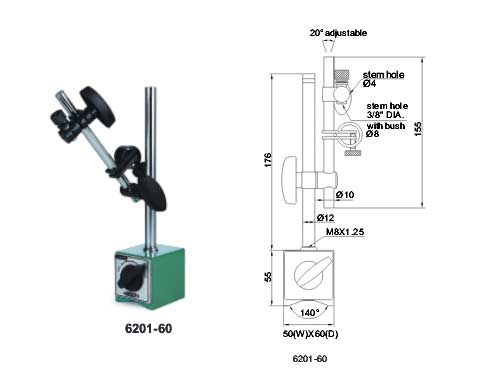

Magnetic Stand

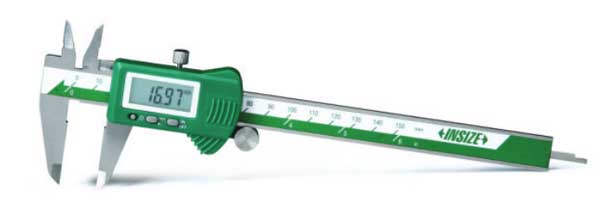

Electronic Digital Caliper
• Basic model Resolution: 0.01mm/0.0005"
• Buttons: zero, power on/off, inch/mm
• Battery SR44, with one spare battery
• Data output
• Meet DIN862, hardened stainless steel construction
• Packed in plastic box

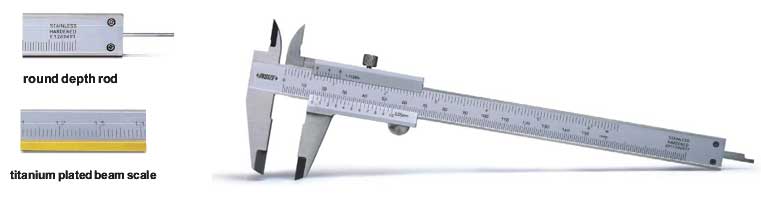

Vernier Caliper



• Optional graduations: 0.02mm, , 0.05mm
• With thumb knob
• Meet DIN862, monoblock
• Made of hardened stainless steel,
• Satin chrome plated reading surface
• Round depth rod is optional
• Titanium plated beam scale is optional
• Packed in leathery pouch or plastic bo

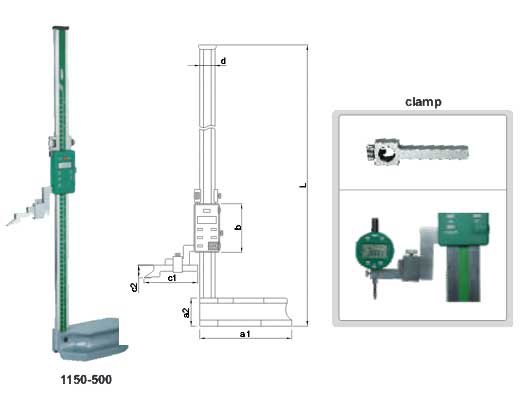

Digital Height Gauge
Resolution: 0.01mm/0.0005" Buttons: on/of f, zero, mm/inch, ABS/INC, data hold, T OL, set ABS/INC is for absolute and incremental measurement T OL is for tolerance measurement
Carbide tipped scriber
Made of stainless steel (except the base) SR44 or LR44 battery
Data output
Supplied with clamp
Optional accessory: SPC cable

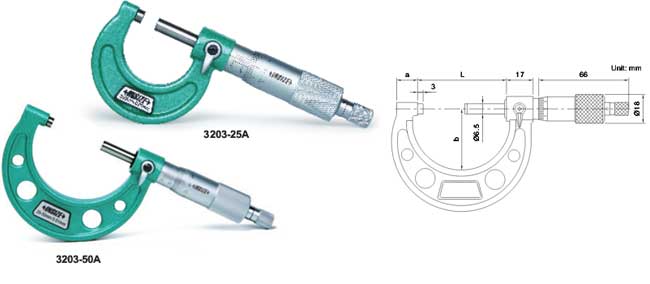

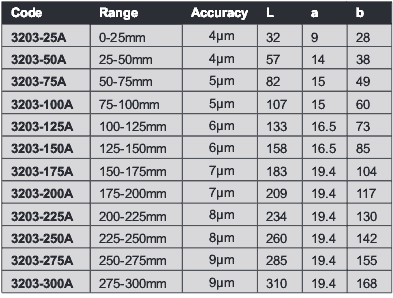

Outside Micrometer
Graduation: metric 0.01mm imperial 0.0001"
Carbide measuring faces
Meet DIN863
Supplied with setting standards(except 0-25mm and 0-1")
